| Item | Detail |
|---|---|
| Thread | G1/2 (BSPP, ISO 228) parallel thread; head-side outside diameter about 27 mm; seals on a washer or cone face, not on the threads |
| North America | Shower arms carry 1/2 inch NPT; the hose or a fitting is the conversion point; specify per project |
| Head-side nut | Conical nut that seats into the shower head inlet and lets the head swivel |
| Supply-side nut | Hex or flat nut with a rubber washer; filter washers or check parts on request |
| Constructions | Interlocked double-lock chrome (ZHSH0001, ZHSH0013); smooth silver (ZHSH0015); PVC with chrome spiral stripe (ZHSH0009 cream, ZHSH0010 black, ZHSH0011 grey); braided textile sleeve (ZHSH0012) |
| Length | Specified per order; state the retail length your market expects [确认: standard lengths] |
| Sourcing | 7 hose models within a 115-model catalog; matched to about 100 handheld heads and 9 holders; MOQ from about 2,000 units |
G1/2: what the thread is and how it seals
G1/2 is a parallel, straight thread from the BSPP family defined in ISO 228, with a head-side outside diameter of about 27 mm. It is the de facto global connection for hand showers and their hoses. Because it is parallel, it does not seal on the threads: the conical nut seats into the shower head inlet, and the hex nut compresses a rubber washer against the mixer outlet. That is why the joint can be assembled by hand without sealant and why the washer, not torque, does the work.
North American plumbing uses 1/2 inch NPT, a tapered thread that seals by interference with tape or sealant. The two are not interchangeable. ZHONGHE hoses are G1/2 by default, and buyers serving the US and Canada state which end needs NPT compatibility so the fitting or adapter is specified before samples.
The seven hoses in the catalog

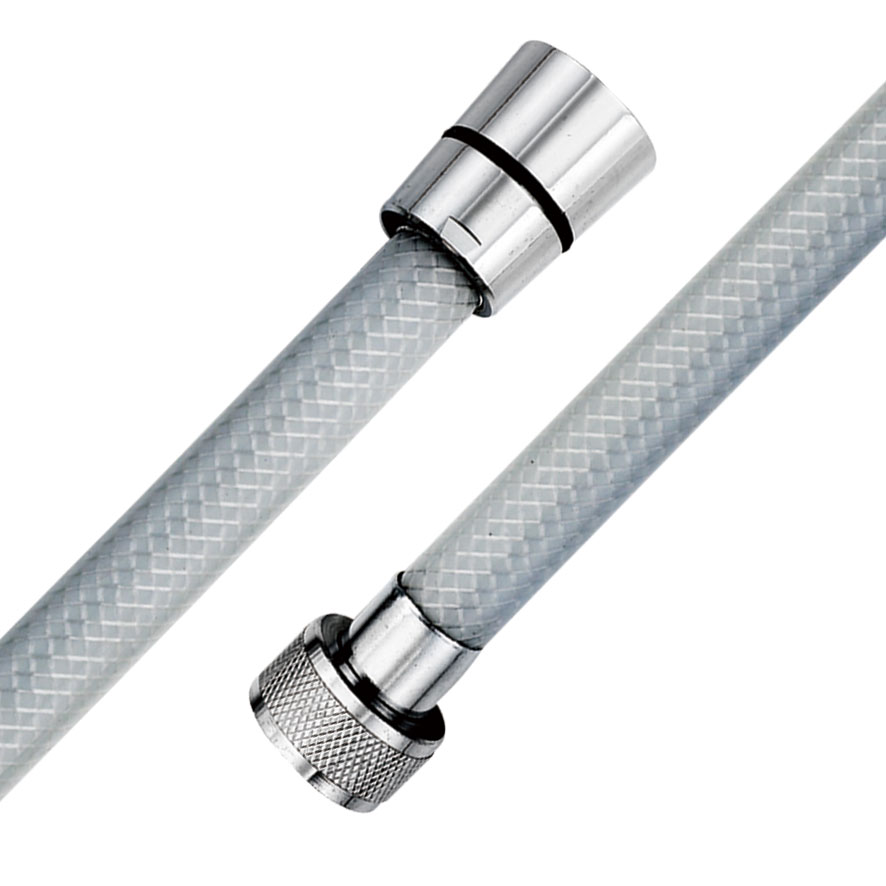

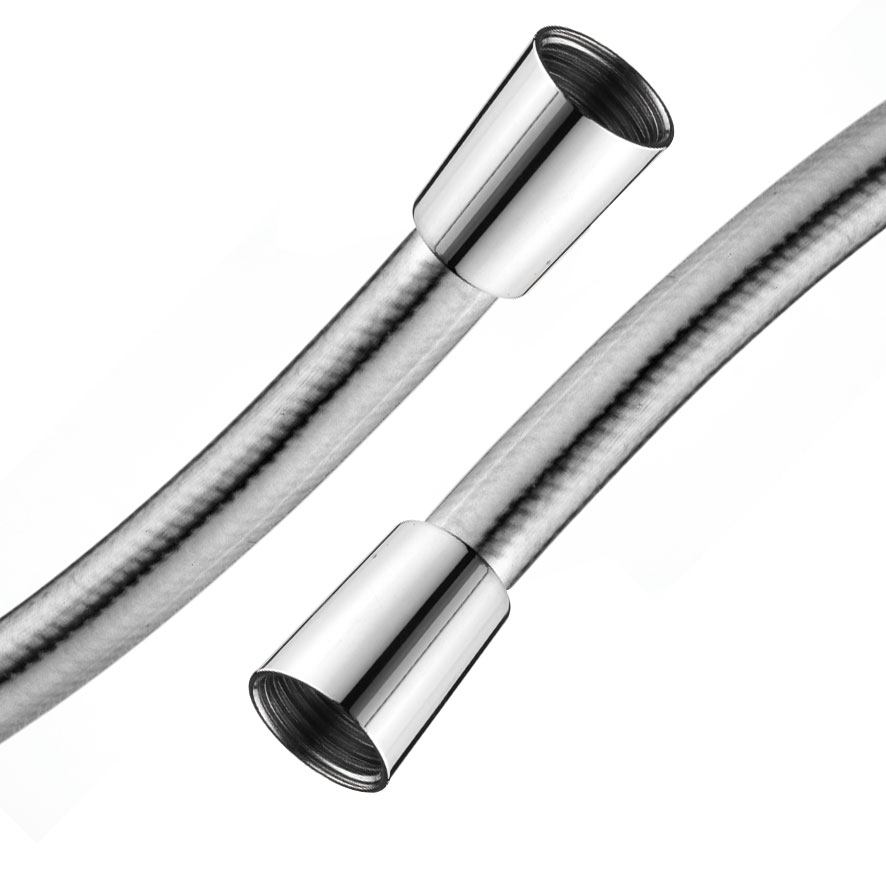

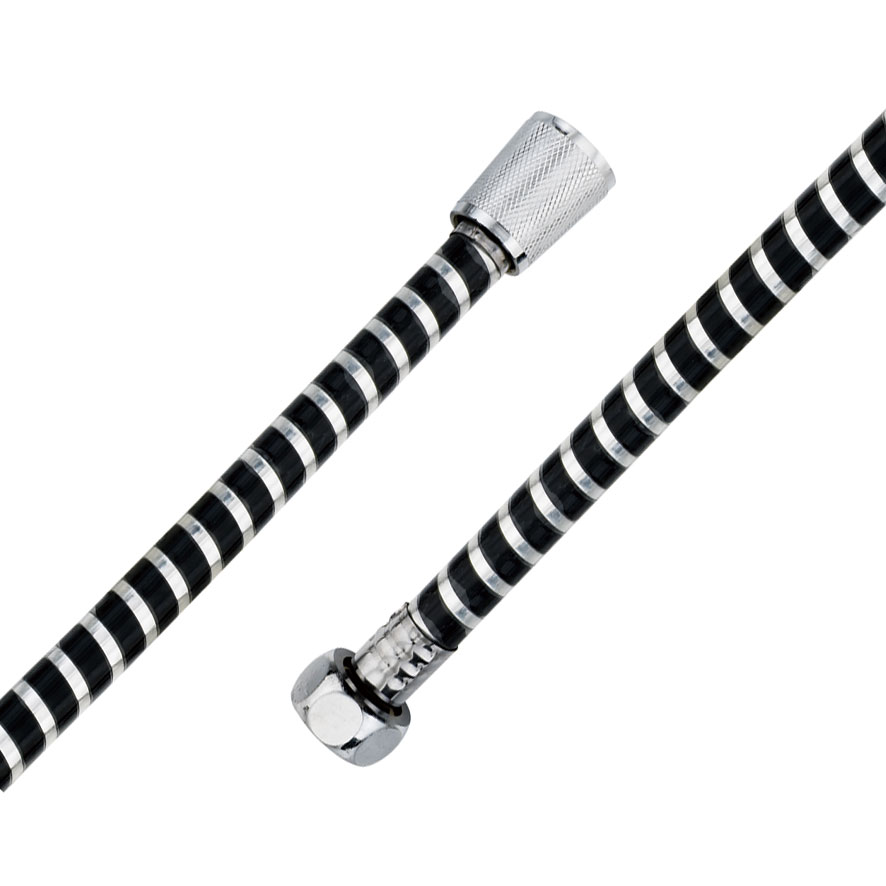

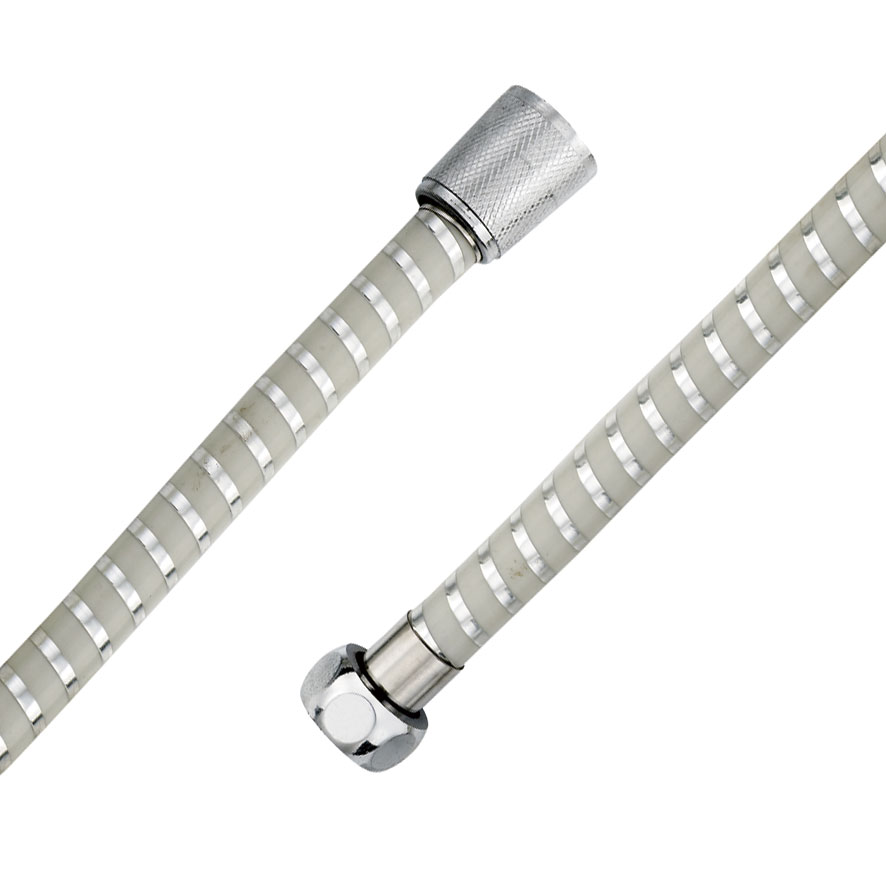

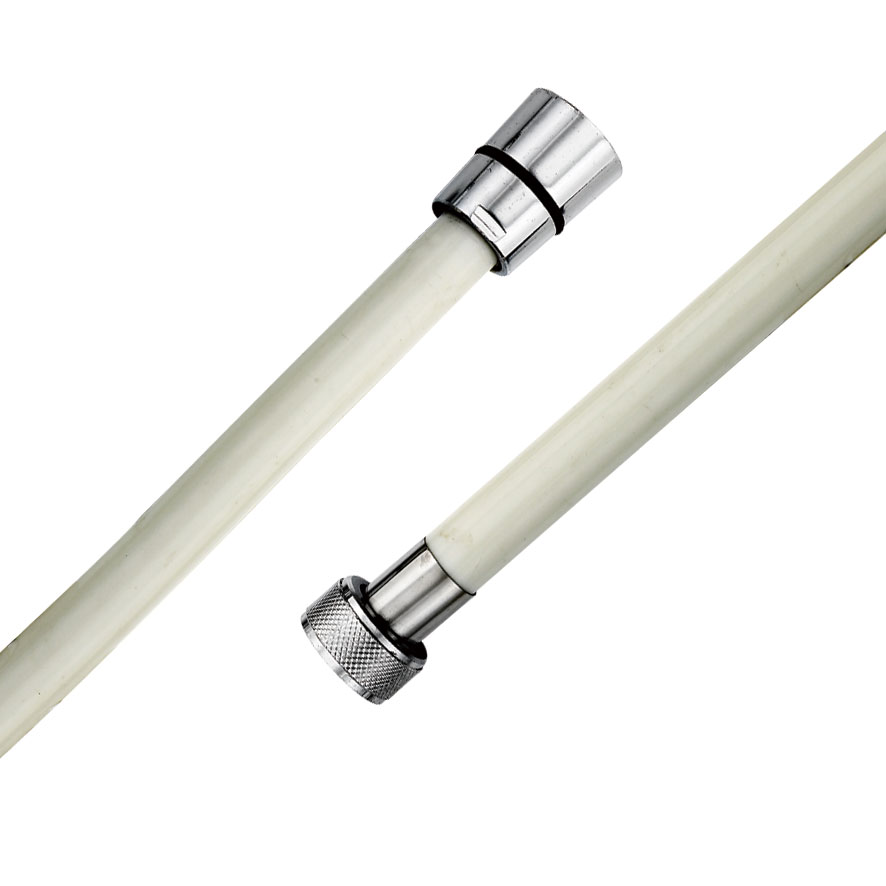

ZHSH0001 is a spiral-wound double-lock chrome hose with a knurled cone nut on one end and a hex nut on the other. ZHSH0013 is a polished interlocking-ring chrome hose with a tapered cone nut. ZHSH0015 is a smooth glossy silver hose with polished chrome nuts. The PVC group dresses a smooth tube with a chrome spiral stripe: ZHSH0009 in cream, ZHSH0010 in black, ZHSH0011 in grey, each with chrome-plated end fittings. ZHSH0012 wraps the hose in a grey braided textile sleeve with polished chrome fittings.
| Model | Construction | Look |
|---|---|---|
| ZHSH0001 | Interlocked (double-lock) metal | Polished chrome, knurled cone nut and hex nut |
| ZHSH0013 | Interlocked ring metal | Polished chrome segments, tapered cone nut |
| ZHSH0015 | Smooth hose | Glossy silver, polished chrome nuts |
| ZHSH0009 | Smooth PVC | Cream with chrome fittings |
| ZHSH0010 | Smooth PVC | Black with chrome spiral stripe |
| ZHSH0011 | Smooth PVC | Grey with chrome spiral stripe |
| ZHSH0012 | Braided textile sleeve | Grey braid, polished chrome fittings |
Specifying a shower hose
State the construction, the length, both nut types, the washer material, any inserted parts (filter washer, check valve), the thread for each end and the destination market, the finish to match the head, and the packaging (bagged, boxed with a head, or bulk). A hose that arrives with the wrong nut for the destination fixture is a returns problem no packaging fixes, so the RFQ should be explicit.
